The Tabletop Supercritical CO₂ Extractor

Nantong Borisbang Industrial Technology (BIT)

Tabletop CO2 Extractor

Compact and Efficient for Research

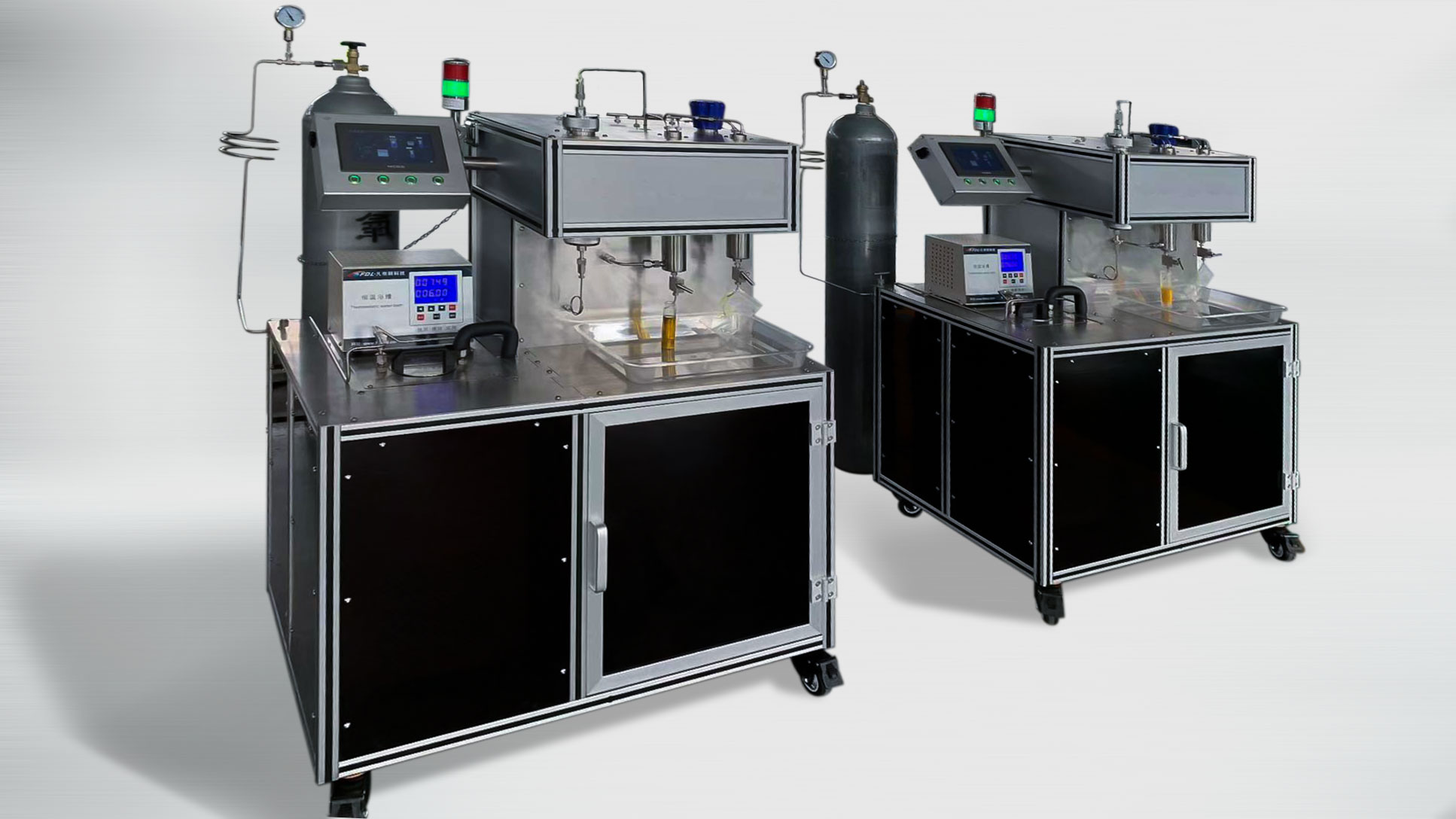

About the Tabletop CO2 Extractor

The Tabletop CO2 Extractor is a compact yet powerful system designed for supercritical fluid extraction in laboratory settings. It delivers high efficiency, precise control, and reliable performance, making it an ideal choice for researchers conducting CO2 extraction experiments.

Features of BIT Tabletop CO2 Extractor

• Compact and Space-Saving: The Tabletop CO2 Extractor features an extraction vessel available in sizes ranging from 100ml to 6000ml, accommodating different laboratory needs.

• High Pressure & Precision Control: This CO2 extraction system operates at up to 350 bar, with an adjustable pressure range of 0-350 bar and 1-bar accuracy. The PID pressure and temperature control system ensures stable and precise experimental conditions.

• Advanced Functionality & Easy Operation: The Tabletop CO2 Extractor includes a fluid preheater, flow meter, multiple extract collection methods, and optional co-solvent addition, supporting diverse supercritical CO2 extraction applications.

• Safe & Durable: Made from SUS304 stainless steel, this CO2 extraction system has safety valves, pressure and temperature monitoring points, and multiple safety mechanisms to ensure reliability.

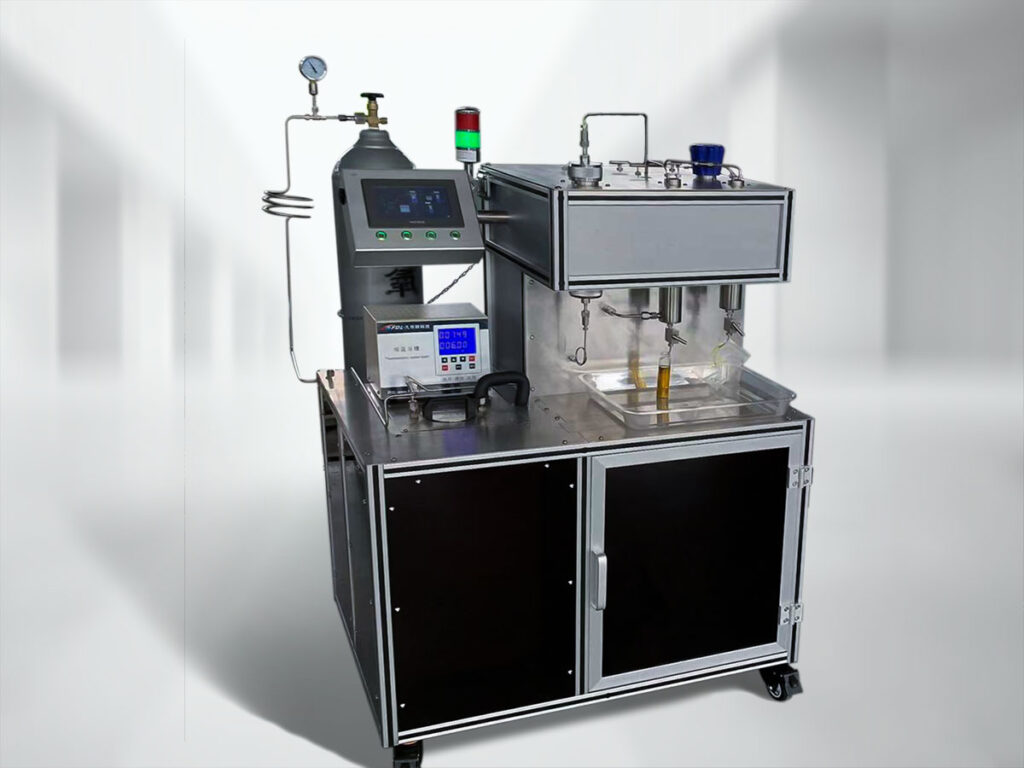

the Tabletop CO₂ Extractor

Technical Specifications of Tabletop CO2 Extractor

ItemL-100L-200
Extractor100ml / 350bar200ml / 350bar
Separator I50ml / 200bar100ml / 200bar
Separator II20ml / 140bar50ml / 140bar
Flow Rate5000ml/h5000ml/h

Key Component Features of BIT Tabletop CO2 Extractor

CO2 Extraction Vessel

  • Equipped with a water-jacketed heating system with adjustable temperature.
  • The operating temperature ranges from 20°C to 70°C, with a design temperature of 85°C.
  • Design pressure: 38MPa, available in 100ml (200ml) / 350 bar.
  • The outlet includes pressure and temperature monitoring points with manual pressure adjustment for stability.

CO2 Separation Vessel

  • Includes a water-jacketed heating system with adjustable temperature.
  • Separator I: 50ml, design pressure of 25MPa, max working pressure of 20MPa.
  • Separator II: 20ml, design pressure of 16MPa, max working pressure of 14MPa.
  • The outlet is equipped with pressure and temperature monitoring points and manual pressure adjustment for consistent results.

CO2 Extraction Pump

  • Dual-piston design, adjustable frequency, flow rate 0-5L/h.
  • Maximum working pressure: 35MPa, with a cooling system for the pump head.

High-Pressure Automatic Back-Pressure Valve

  • Model: ER1700 / ER5000 Controller.
  • Manual operation.
  • Manufactured by Emerson, USA.

Five Advantages of BIT Tabletop CO2 Extractor

  • Cost-Effective: Tabletop CO2 Extractor is more affordable than fully automated systems, making it an excellent choice for laboratory supercritical fluid extraction research.
  • Powerful Functions: This system delivers outstanding performance and versatility for supercritical CO2 extraction and reaction applications.
  • Safe & Reliable: The modular design ensures easy and secure operation while maintaining high flexibility.
  • Precise Control: The Tabletop CO2 Extraction Equipment enables accurate measurement and regulation of temperature and pressure, ensuring reliable research results.
  • Durable Construction: Made with high-quality materials, this CO2 extraction system is long-lasting and highly durable.

Nine Key Features of BIT Tabletop CO2 Extractor

  • Most precise control for accurate CO2 extraction.
  • Real-time temperature and pressure monitoring for improved performance.
  • Modular and expandable design for various supercritical fluid applications.
  • Quick-opening extraction vessel for safety and convenience.
  • High-reliability, high-precision, pulse-free CO2 pump system.
  • Noise-reduction technology for a better user experience.
  • Patented high-performance cyclone separator for efficient separation.
  • Supercritical fluid recycling system to improve efficiency.
  • User-friendly software interface, simple and intuitive operation.

Conclusion

The BIT Tabletop CO2 Extractor combines compact size, high efficiency, safety, and practicality. With precise control, reliable operation, and a user-friendly design, it is the perfect choice for laboratories conducting supercritical CO2 extraction research.
