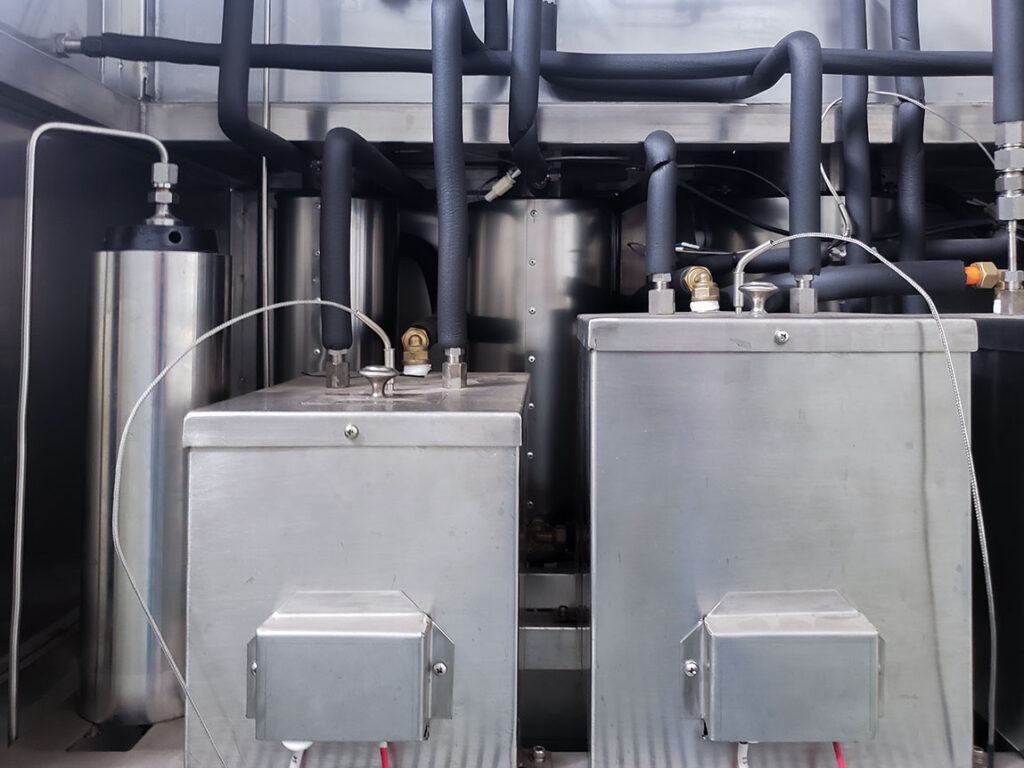

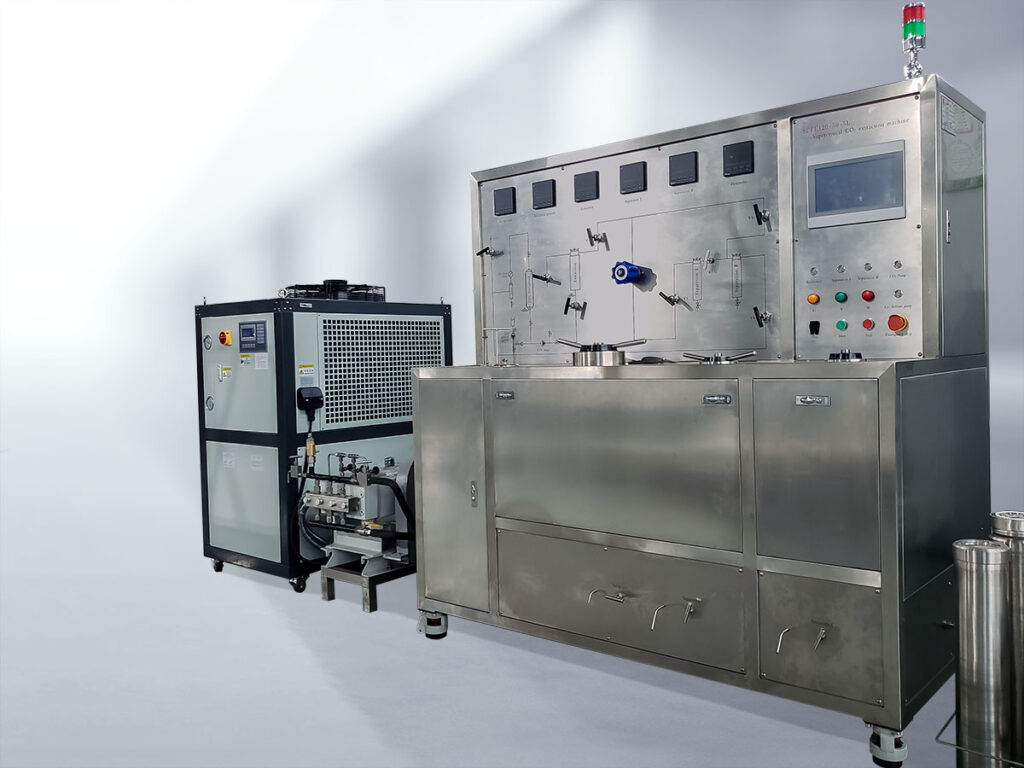

The Tabletop Supercritical CO₂ Extractor is a tabletop supercritical CO₂ extraction system featuring one extraction vessel and two separation vessels. It uses CO₂ as the extraction medium, which is fully recyclable. The inner surfaces of all ships, pipelines, and valves that come into contact with biomass are made of 304 stainless steel, ensuring acid and alkali resistance and compliance with food-grade safety standards. The surfaces in contact with hot and cold water are also made of 304 stainless steel for enhanced durability.
The L-Series Tabletop CO₂ Extractor operates at a design pressure of 38 MPa and a maximum working pressure of 35 MPa. Engineers built the pressure vessel to last 20 years and followed Chinese design, manufacturing, inspection, installation, and commissioning standards.
Read More: Supercritical fluid extraction
Key Advantages of the L-Series Tabletop CO₂ Cannabis Extraction System
- PLC Intelligent Control – Supports the tabletop supercritical CO₂ extraction and reactions with precise parameter adjustments, ensuring high-purity extraction and consistent reactions.
- Cost-Effective – Lower initial investment compared to fully automated systems, making it an affordable choice for budget-conscious users.
- Versatile – Suitable for supercritical extraction and reaction processes, serving laboratory research, process development, and optimization needs.
- Compact Design – The Tabletop format saves space, making it ideal for laboratories and small-scale production.
- High Efficiency & Flexibility – Designed for repeatable experiments and technical development, ensuring reliable performance for research and small-batch production.
Table of the Four Main Unit Parameters of the Tabletop CO₂ Extractor
| Item | Unit Name | Quantity | Specifications | Technical Description |
| 1 | Extraction Vessel | 1 | Volume: 100-200 mL Design Pressure: 38 MPa Max Working Pressure: 35 MPa Operating Temperature: 20°C-70°C | Includes stress analysis design. The cylinder body and water jacket are made of 304. Equipped with pressure and temperature detection points. Manual pressure adjustment ensures pressure stays within CO2 extraction parameters. A safety valve and vent port were installed at the outlet. |
| 2 | Separation Vessel | 2 | Volume: 50 mL (I) / 20 mL (II) Vertical Design Pressure: 25 MPa Max Working Pressure: 20 MPa Operating Temperature: 20°C-70°C | The cylinder material is 304. Equipped with pressure and temperature detection points. Manual pressure adjustment ensures pressure stays within CO2 extraction parameters. A safety valve and a drain port are installed at the outlet of the CO2 separation vessel. |
| 3 | Condenser | 1 | Capacity: 500 mL Design Pressure: 16 MPa Working Pressure: 14 MPa Design Temperature: 5°C-55°C | Cylinder material: 304. |
| 4 | CO2 Injection Pump | 1 | CO2 Flow Rate: 5 L/h Outlet Pressure: 40 MPa | Ceramic plunger. Oil pump with self-circulating cooling. Pump head with cooling system. Wetted materials: 304. Frequency controlled. |
BIT’s Tabletop CO₂ Cannabis Extractor – Five Key Features
BIT designed the tabletop CO₂ cannabis extractor for small-scale cannabis extraction, serving growers and small businesses. With its portable and compact design, it is ideal for space-limited environments. Moreover, the system compresses and liquefies CO₂ gas, and then uses it as a solvent to extract valuable compounds from cannabis plants, ensuring efficiency and high-purity results.
• Compact & Portable – Lightweight and easy to transport, fitting on a laboratory bench or small workspace.
• Built-in Temperature & Pressure Gauges – Enables precise adjustments via a PLC touchscreen, ensuring consistent extraction results.
• Automated Operation – Prevents under-extraction and over-extraction, ensuring batch-to-batch consistency.
• Advanced Safety Features – Equipped with built-in pressure relief valves and automatic shutdown when pressure or temperature exceeds limits, ensuring operator safety and preventing equipment damage.
• High-Quality Extracts – Through precise temperature and pressure control, the system produces high-terpene, cannabinoid, and flavonoid-rich cannabis oil, free of solvent residues or contaminants.
