Introduction to Supercritical CO2 Extraction

Essential oils extracted from aromatic plants are widely used in a variety of industries, including skincare, aromatherapy, and natural wellness. Among the different methods of extraction, supercritical CO2 extraction is gaining popularity due to its efficiency, safety, and ability to preserve the aromatic profile and therapeutic benefits of essential oils.

Supercritical CO2 extraction uses carbon dioxide in its supercritical state to extract essential oils from plants without the use of harmful solvents. This method ensures that the extract retains its purity, potency, and aroma, making it a preferred choice for the production of high-quality essential oils.

Supercritical CO2 Extraction Technology [Read More]

---

What Is Supercritical CO2 Extraction?

Supercritical CO2 (SC-CO2) is carbon dioxide that has been pressurized and heated to a point where it exhibits both gas and liquid properties. In this state, CO2 becomes an ideal solvent for extracting essential oils and other valuable compounds from plant material.

Key Benefits of Supercritical CO2 Extraction:

• Solvent-Free: No chemical residues, making it ideal for creating natural, safe extracts.
• Preserves Therapeutic Compounds: Lower temperatures prevent the degradation of sensitive components like terpenes and phenols.
• High-Quality Extracts: Provides pure, potent oils with a complete aromatic profile.
• Environmentally Friendly: CO2 is recyclable and non-toxic.

---

Common Aromatic Plants Used for SC-CO2 Extraction

1. Lavender (Lavandula angustifolia)

2. Rose (Rosa damascena)

3. Chamomile (Matricaria chamomilla / Chamaemelum nobile)

4. Rosemary (Rosmarinus officinalis)

5. Peppermint (Mentha piperita)

---

The SC-CO2 Extraction Process

1. Raw Material Preparation:

Aromatic plant parts, such as flowers, leaves, or stems, are harvested and dried. The material is then ground into smaller particles to increase the surface area for extraction.

2. CO2 Compression & Heating:

CO2 gas is pressurized and heated to its supercritical state (above 31.1°C and 73.8 bar), where it becomes an ideal solvent.

3. Extraction:

The supercritical CO2 is passed through the plant material, dissolving the essential oils and other valuable compounds.

4. Separation:

The pressure and temperature are lowered to separate the CO2 from the extracted oils, which are then collected in separate containers.

5. Collection & Storage:

The extracted essential oils are stored in dark glass containers to protect them from light and heat, ensuring they retain their potency and quality.

Example: Supercritical CO2 Extraction Workflow for Agarwood Essential Oil

Agarwood (Aquilaria spp.) is a rare and highly valued aromatic wood used to produce luxurious essential oils. The supercritical CO2 extraction process for agarwood is more intricate due to the resin-rich and dense nature of the material.

Step-by-Step Extraction Process:

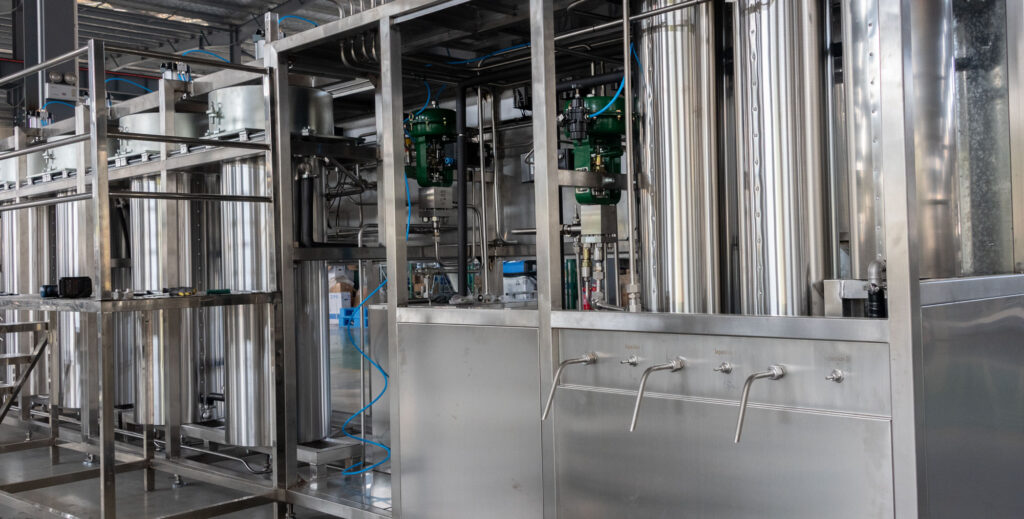

Filling the Extraction Vessel

• The pretreated material is evenly loaded into the extraction vessel (e.g., 50L × 4 capacity).
• Mesh plates or filters are placed at both ends to prevent clogging during circulation.

CO2 Pressurization and Heating

• CO2 is compressed and heated to reach a supercritical state (typically 35–45°C and 280–320 bar for agarwood).
• The flow rate is controlled at 10–15 kg/h, depending on scale and pressure stability.

Static/Dynamic Extraction Cycle

• Static stage (30–60 min): CO2 saturates the agarwood material to dissolve resinous compounds.
• Dynamic stage (2–4 hrs): Continuous CO2 circulation carries dissolved essential oils out of the vessel.

Separation Stage

• The pressure is reduced in the separation vessels (S1, S2, S3) in steps.
• Heavy resin components precipitate in the first separator (~80 bar), and lighter volatiles in the second/third (~50–60 bar).

Oil Collection and Filtration

• Collected agarwood oil is thick, dark, and rich in sesquiterpenes and chromone derivatives.
• Final filtration may be done to remove waxes or suspended particles.

Storage

• The essential oil is sealed in amber glass containers, flushed with nitrogen to prevent oxidation, and stored in a cool, dark place.

Key Parameters for Agarwood SC-CO2 Extraction:

Parameter	Typical Range
Temperature	35–45°C
Pressure	280–320 bar
CO2 Flow Rate	10–15 kg/h
Extraction Time	3–6 hours
Separation Pressure	S1: 80–100 bar, S2: 50–60 bar
Yield (from dry wood)	1.0–2.5% (depending on resin)

Why Use SC-CO2 for Agarwood?

• Preserves rare sesquiterpenes and chromones with therapeutic and olfactory value.
• No solvent residues – ideal for premium perfumery and medicinal applications.
• Efficient extraction even from dense, oily wood matrices.
• Adjustable selectivity via temperature and pressure tuning.

Supercritical CO2 Extraction and Fractional Distillation of Agarwood: A Solvent-Free Approach[Read More]

---

Applications and Market Demand for SC-CO2 Extracts

The demand for supercritical CO2 extracts is growing rapidly, particularly in industries that prioritize natural, clean-label ingredients. Key applications include:

• Skincare & Cosmetics: Premium formulations that require high-quality, solvent-free oils.
• Aromatherapy: Pure, undiluted essential oils used for wellness and emotional support.
• Natural Perfumery: SC-CO2 extracts offer richer, more complex aromas for high-end fragrances.
• Functional Foods & Beverages: Natural flavoring and health-boosting ingredients.

As consumer demand for natural and sustainable products increases, SC-CO2 extracted essential oils are becoming an essential ingredient in high-quality products.

---

Frequently Asked Questions (FAQ)

Q: How does supercritical CO2 extraction compare to steam distillation?

A: SC-CO2 extraction is more efficient, yielding higher-quality extracts that preserve the full aromatic profile of the plant, without the use of heat that could degrade sensitive compounds.

Q: Is SC-CO2 extraction safe for use in food and skincare products?

A: Yes, supercritical CO2 extraction uses food-grade CO2, which is non-toxic and leaves no harmful residues, making it safe for both skincare and edible products.

Q: Are SC-CO2 extracts suitable for organic certification?

A: Absolutely. As long as the raw materials used are organically certified, the SC-CO2 extraction process can be considered organic as well.

---

Conclusion

Supercritical CO2 extraction offers a revolutionary way to produce high-quality essential oils from aromatic plants. This method ensures a pure, solvent-free, and potent extract, making it ideal for applications in skincare, perfumery, wellness, and functional foods. As the demand for clean-label, natural ingredients grows, SC-CO2 extraction will continue to be a critical technique in the essential oil industry.
